Beskrivelse

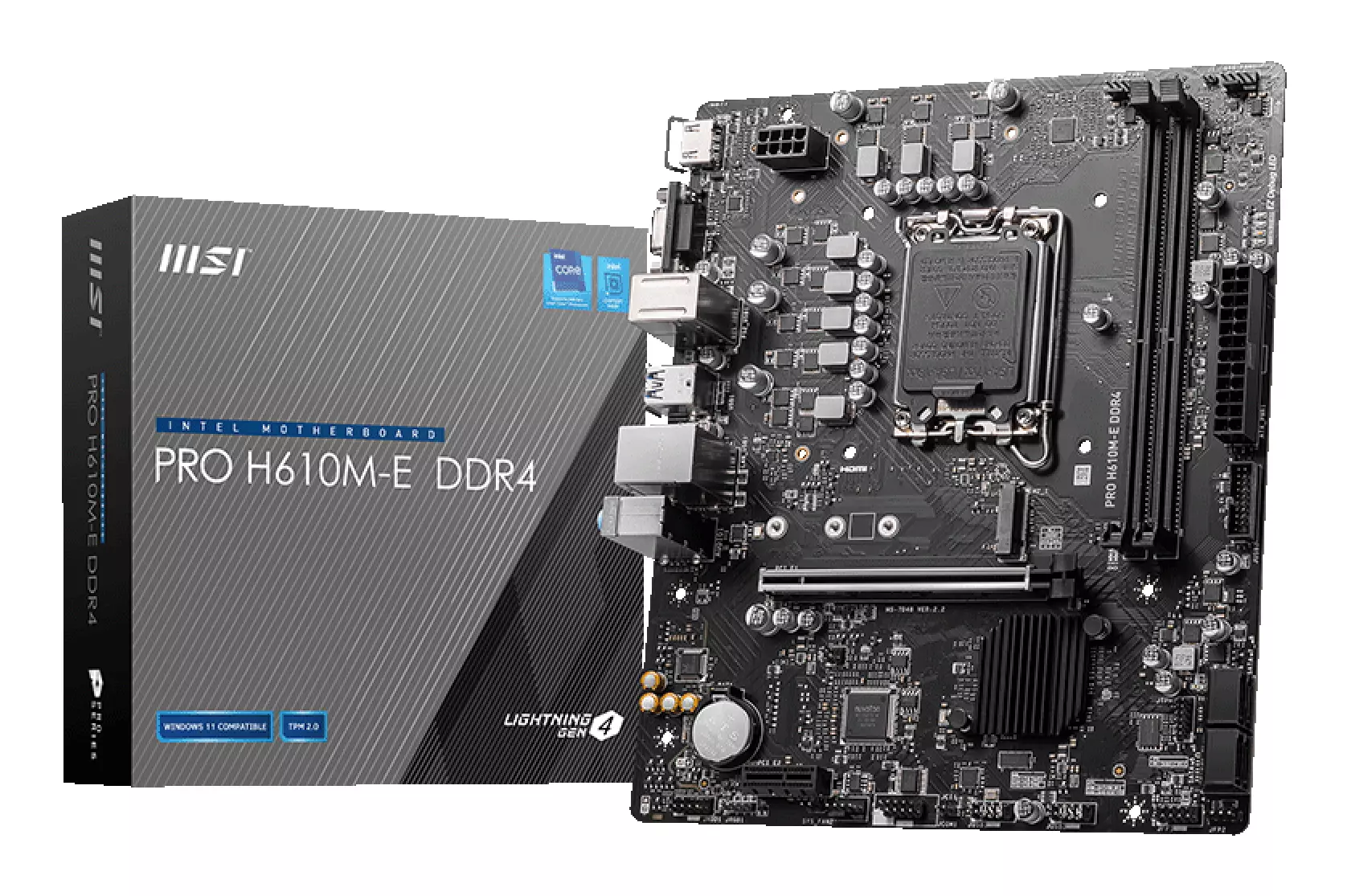

PRO H610M-E DDR4Features:Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socketSupports DDR4 Memory, up to 3200(MAX) MHzCore Boost : With premium layout and digital power design to support more cores and provide better performanceMemory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibilityLightning Fast Experience: PCIe 4.0Audio Boost: Reward your ears with studio grade sound qualitySteel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.Specifications:PROCESSORSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsProcessor socket LGA1700CHIPSETIntel® H610 ChipsetMEMORY2x DDR4 memory slots, support up to 64GBSupports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)Supports Dual-Channel modeSupports non-ECC, un-buffered memoryEXPANSION SLOT1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x161x PCIe x1 slot (From H610 chipset) Supports PCIe 3.0 x1ONBOARD GRAPHICS1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1x VGA port, supporting a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz SATA PORTS4x SATA 6Gb/s ports (From H610 chipset)M.2 SSD SLOT1x M.2 slot (Key M) (from CPU)Supports up to PCIe 3.0 x4Supports up to SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devicesAUDIORealtek® ALC897 Codec 7.1-Channel High Definition AudioLAN1x Realtek® RTL8111H 1Gbps LAN controllerPOWER CONNECTORS1x 24-pin ATX main power connector1x 8-pin +12V power connectorINTERNAL USB CONNECTORS1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports2x USB 2.0 Type-A connectors (From Hub-GL850G) Supports additional 4 USB 2.0 portsFAN CONNECTORS1x 4-pin CPU fan connector2x 4-pin system fan connectorsSYSTEM CONNECTORS1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x TPM module connector1x Serial port connectorJUMPERS1x Clear CMOS jumperLED FEATURES1x 4-pin RGB LED connector4x EZ Debug LEDBACK PANEL PORTSHDMI™VGAKeyboard / MouseUSB 3.2 Gen 1 5Gbps Type-ALAN portAudio connectorUSB 2.0DIMENSIONSM-ATX Form Factor9.3 in. x 7.9 in. (23.6 cm x 20 cm)
