Beskrivelse

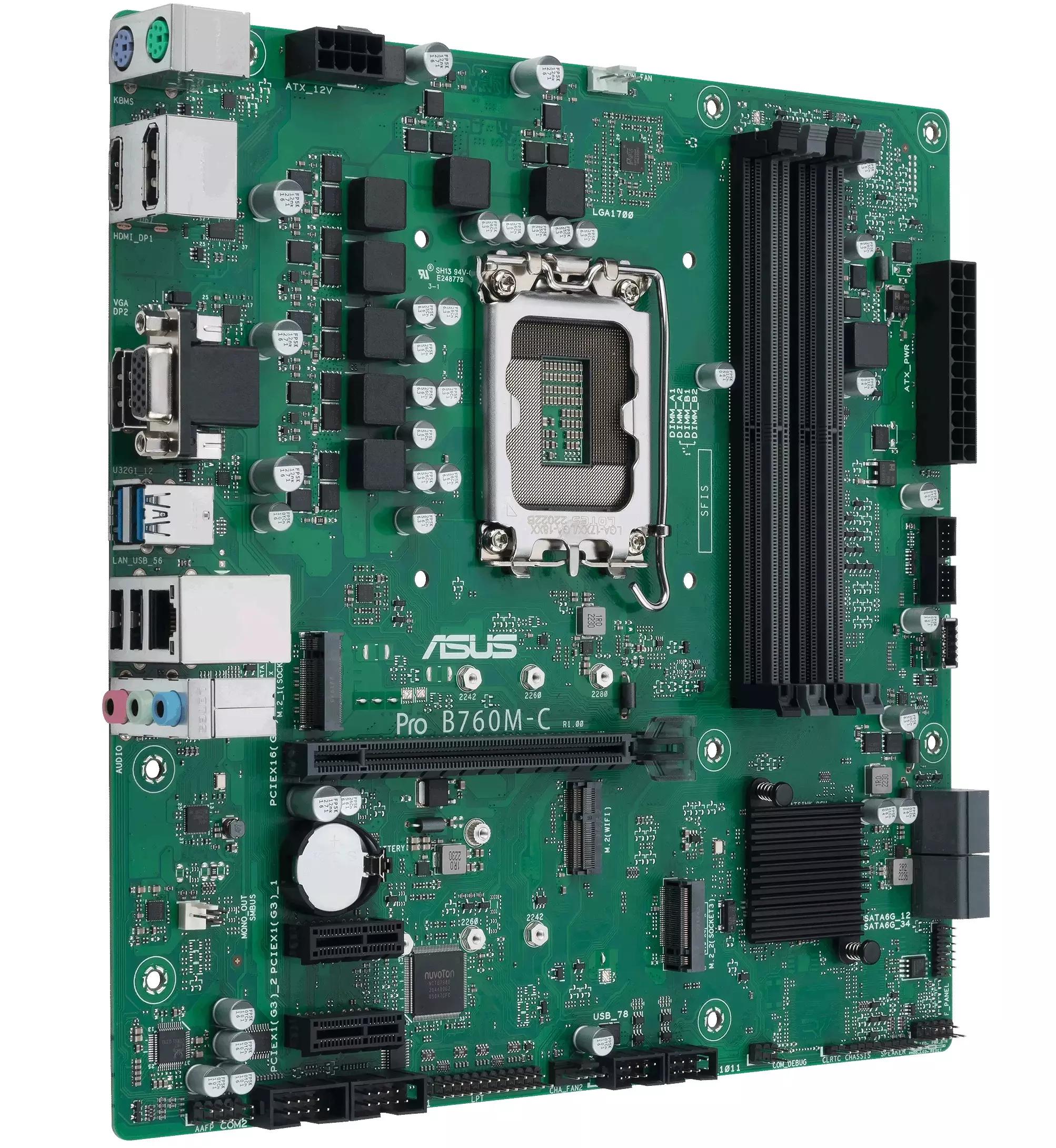

Pro B760M-C-CSMFeatures:Intel® LGA 1700 socket: Ready for 14th, 13th and 12th Gen Intel® processorsASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboardsASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administrationEnhanced system security: A self-recovering BIOSConsistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environmentsEfficient management and customization: An event log and commercial BIOS kit to enable easy maintenanceBetter serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processesUltrafast connectivity: PCIe 4.0, DDR5, front USB 3.2 Gen 1 Type-C®Specifications:CPUIntel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0ChipsetIntel® B760 ChipsetMemory4 x DIMM, Max. 192GB, DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)Optimem IIGraphics 2 x DisplayPort1 x VGA port1 x HDMI® portExpansion SlotsIntel® Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0/3.0 x16 slotIntel® B760 Chipset 2 x PCIe 3.0 x1 slotsStorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s portsIntel® Core™ Processors (14th & 13th & 12th Gen)M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s portsEthernet1 x Intel® 1Gb EthernetASUS LANGuardWireless & BluetoothM.2 slot only (Key E, CNVi & PCIe)USBRear USB (Total 4 ports)2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsAudioRealtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playbackBack Panel I/O Ports2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)2 x DisplayPorts1 x HDMI® port1 x VGA port1 x Intel® 1Gb Ethernet port3 x Audio jacks1 x PS/2 keyboard (purple) port1 x PS/2 mouse (green) portInternal I/O ConnectorsFan and Cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous1 x Clear CMOS header1 x Chassis Intrude header2 x COM Port headers1 x Front Panel Audio header (AAFP)1 x COM debug header1 x LPT header1 x Mono-out header (with Amp IC)1 x M.2 slot (Key E)1 x SMBUS header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel headerSpecial FeaturesASUS Q-DesignQ-DIMMQ-LED CoreQ-SlotASUS EZ DIYBox HeadersBespoke Motherboard Design & Business Focused FeaturesASUS Self Recovering BIOSASUS Event LogASUS Commercial BIOS kitAnti-Moisture Coating24/7 ReliabilityOvercurrent ProtectionSoftware FeaturesASUS Exclusive SoftwareIT Management software supportedASUS Control Center Express (ACCE)BIOS128Mb Flash ROMManageabilityWOL by PME, PXEAccessoriesCables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x Screw package for M.2 SSD1 x Screw package for M.2 Key EDocumentation1 x ACC Express Activation Key Card1 x User guideOperating SystemWindows® 11, Windows® 10 64-bitForm FactormATX Form Factor9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
