Beskrivelse

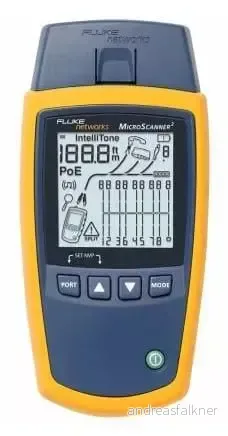

MicroScanner² Cable VerifierMS2-100MicroScanner2 Cable Verifier. Includes MicroScanner2 Cable Verifier with main wiremap adapter, multi-language Getting Started Guide, user CD, batteries, and Fluke Networks carry pouchNext-generation MicroScanner verifies voice/data/video cable and services with a revolutionary user interface.Streamline verification testingThe MicroScanner2 Cable Verifier presents a revolutionary change in voice, data, and video cable testing. It starts by taking results from what was four different test modes and displaying them all at once – graphical wiremap, pair lengths, distance to fault, cable ID, and far end device. What’s more, its integrated RJ11, RJ45, and coax test ports support virtually any type of low-voltage cable testing with no need for awkward adapters. The end result is reduced test time and technician error. That makes high-quality installations more efficient than ever.Rule out service problems fastToday’s communications technicians have a lot more problems to deal with than just the cabling. They have to rule out a whole host of potential cable and service issues before determining the cause of a connection problem. Is there telephone voltage? What’s the polarity? Is there an Ethernet switch at the far end? Is PoE available? MicroScanner2 acknowledges this, giving technicians high power vision to verify today’s most common voice, data, and video services. That means faster, more comprehensive troubleshooting.Features:Revolutionary Interface – graphical wiremap, length, cable ID, and distance to fault displayed on one screenMultimedia Support – tests all common media types including RJ11, RJ45, Coax, with no need for adaptersIntelliTone Toning – locates virtually any cable or wire pair with IntelliTone digital and analog toningVDV Service Detection – verifies today’s media services, including 10/100/1000 Ethernet, POTS, and PoERugged Housing – integrated rubber holster enhances grip and makes it durable enough for the toughest jobsOversized Display – large, backlit LCD makes results crystal clear whether in bright sunshine or in a dark closetSpecificationsTest ConnectorsTwisted-pair: UTP, FTP, SSTP 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs; Coax: F-connector for 75 Ω, 50 Ω, 93 Ω cablesCable TestsLength (460 m or 1500 ft. with resolution to 0.3 m or 1 ft.), wiremap to TIA-568A/B standards, remote ID locators; displays results on one screenTone GeneratorIntelliTone digital tone: [500 KHz]; analog tones: [400Hz, 1KHz]PoE DetectionSolicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devicesEthernet Port TestAdvertised speed of 802.3 Ethernet ports (10/100/1000)Power SourceBattery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteriesBattery life: 20 hours of typical useOther compatible battery types: 2 AA photo lithium, NIMH, NICADDimensions3 in x 6.4” x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm)Weight0.8 lbs. (363 grams)DisplayMonochrome liquid crystal display (LCD) with backlightCalibrationUser-configurable NVP for twisted pair and coax; determines actual NVP with known length of cableOperating Temperature32 °F to 113 °F (0 oC to 45 oC)Storage Temperature-4 °F to +140 °F (-20 oC to +60 oC)Operating Humidity90 % (50 °F to 95 °F; 10 oC to 35 oC)(%RH without condensing)75 % (95 °F to 113 °F; 35 oC to 45 oC)Shock VibrationMeets requirements for MIL-PRF-28800F for Class 2 random vibration; 1 m drop test with and without wiremap adapter attachedSafetyEN 61010-1 2nd EditionAltitude4000 m; Storage: 12000 mEMCEN 61326-1Agency CertificationsN10140 C-Tick EMC standard; FCC Part 15 Class A; CE European Union Directives Pollution Degree 2WarrantyOne year Selv om vi gjør vårt beste for å gi relevant informasjon, så er bildene kun for å gi etgenerelt inntrykk, og selve varen er ikke nødvendigvis akkurat slik som avbildet. Dersom det erforskjeller mellom produktoverskrift, beskrivelse og bilde, så er det produktoverskriften somgjelder (f.eks. PCer kommer ikke nødvendigvis med skjerm selv om bildet viser det). Hvis noe eruklart, vennligst send epost til kundestøtte før du bestiller. Vi tar forbehold om trykkfeil og endring av priser og spesifikasjoner uten varsel.
