Beskrivelse

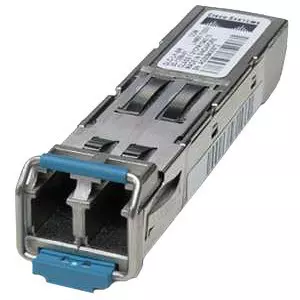

Cisco SFP Optics For Gigabit Ethernet ApplicationsThe industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.1000BASE-SX SFP for Multimode Fiber OnlyThe 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on legacy 50 μm multimode fiber links up to 550 m and on 62.5 μm Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220 m. It can support up to 1km over laser-optimized 50 μm multimode fiber cable.1000BASE-LX/LH SFP for Both Multimode and Single-Mode FibersThe 1000BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers. When used over legacy multimode fiber type, the transmitter should be coupled through a mode conditioning patch cable. SFP Port Cabling SpecificationsProductWavelength (nm)Fiber TypeCore Size (μm)Modal Bandwidth (MHz* Km)Operating Distance (m)1000BASE-SX850MMF62.5160220 (722 ft)62.5200275 (902 ft)50400500 (1,640 ft)50500550 (1,804 ft)5020001000 (3281 ft)1000BASE-LX/LH1310MMF*62.5500550 (1,804 ft)50400550 (1,804 ft)50500550 (1,804 ft)SMF-**-10,000 (32,821 ft)1000BASE-EX1310SMF-**-40,000 (131,234 ft)1000BASE-ZX1550SMF–Approximately 70 km depending on link loss1000BASE-BX-U1310SMF-**-10,000 (32,821 ft)1000BASE-BS-D1490SMF-**-10,000 (32,821 ft)Ordering InformationProduct DescriptionProduct Number1000BASE-T standardGLC-T1000BASE-SX short wavelength; without DOMGLC-SX-MM1000BASE-LX/LH long-wavelength/long haul; without DOMGLC-LH-SM1000BASE-ZX extended distance;GLC-ZX-SM1000BASE-BX10-D downstream bidirectional single fiber; with DOMGLC-BX-D1000BASE-BX10-U upstream bidirectional single fiber; with DOMGLC-BX-U1000BASE-T NEBS 3 ESDSFP-GE-T1000BASE-SX short wavelength; with DOMSFP-GE-S1000BASE-LX/LH long-wavelength; with DOMSFP-GE-L1000BASE-EX long-wavelength; with DOMGLC-EX-SMD1000BASE-ZX extended distance; with DOMSFP-GE-Z1000BASE-SX short wavelength; ruggedGLC-SX-MM-RGD1000BASE-LX/LH long wavelength; ruggedGLC-LX-SM-RGD1000BASE-ZX extended distance; ruggedGLC-ZX-SM-RGD
