Beskrivelse

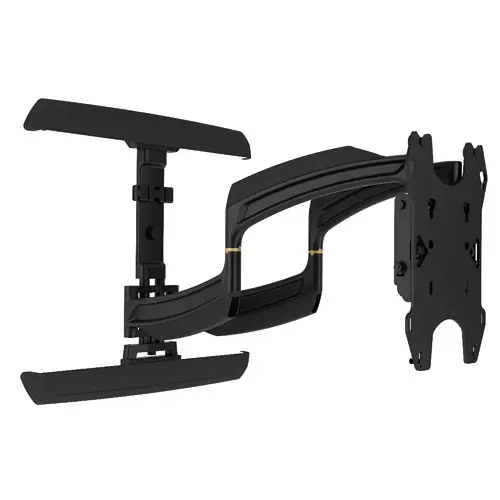

Medium THINSTALL™ Dual Swing Arm Wall Mount – 25″ ExtensionTS325TUA lightweight, low-profile full-motion wall mount for TVs 30-52″ . Easily installs with one person by mounting the top rail and sliding on the assembly.FeaturesUltra Low Profile Sleek design collapses to 1.3 (33 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma.Extends up to 635 mm Full extension maximizes viewing potential.Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt to achieve optimal viewing angles.Centerless™ Lateral Shift Post-installation lateral shift allows up to 406 mm of adjustment for limitless centering capability.Integrated Cable Management Enclosed, tool-free cable covers and a wide open wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation.SpecificationsColor: BlackLateral Shift: 16″ (406.4mm)Manual Height Adjustment: 1Maximum Extension: 25.7″ (652.8mm)Minimum Depth: 1.3″ (33.mm)Mounting Pattern Compatibility (Universal Versions): (100 x 100mm – 600 x 400mm)Orientation: LandscapeOverall Dimensions (H x W x D): 17.2″ x 29.5″ x 1.3″ (437 x 749 x 33mm)Post-Installation Leveling (Roll): YesSolution Type: UniversalTilt: + ° , – 15°Typical Screen Sizes: 30 – 52″Wall Stud Compatibility (inches): 16Weight Capacity: 75 lbs (34.kg)
