Beskrivelse

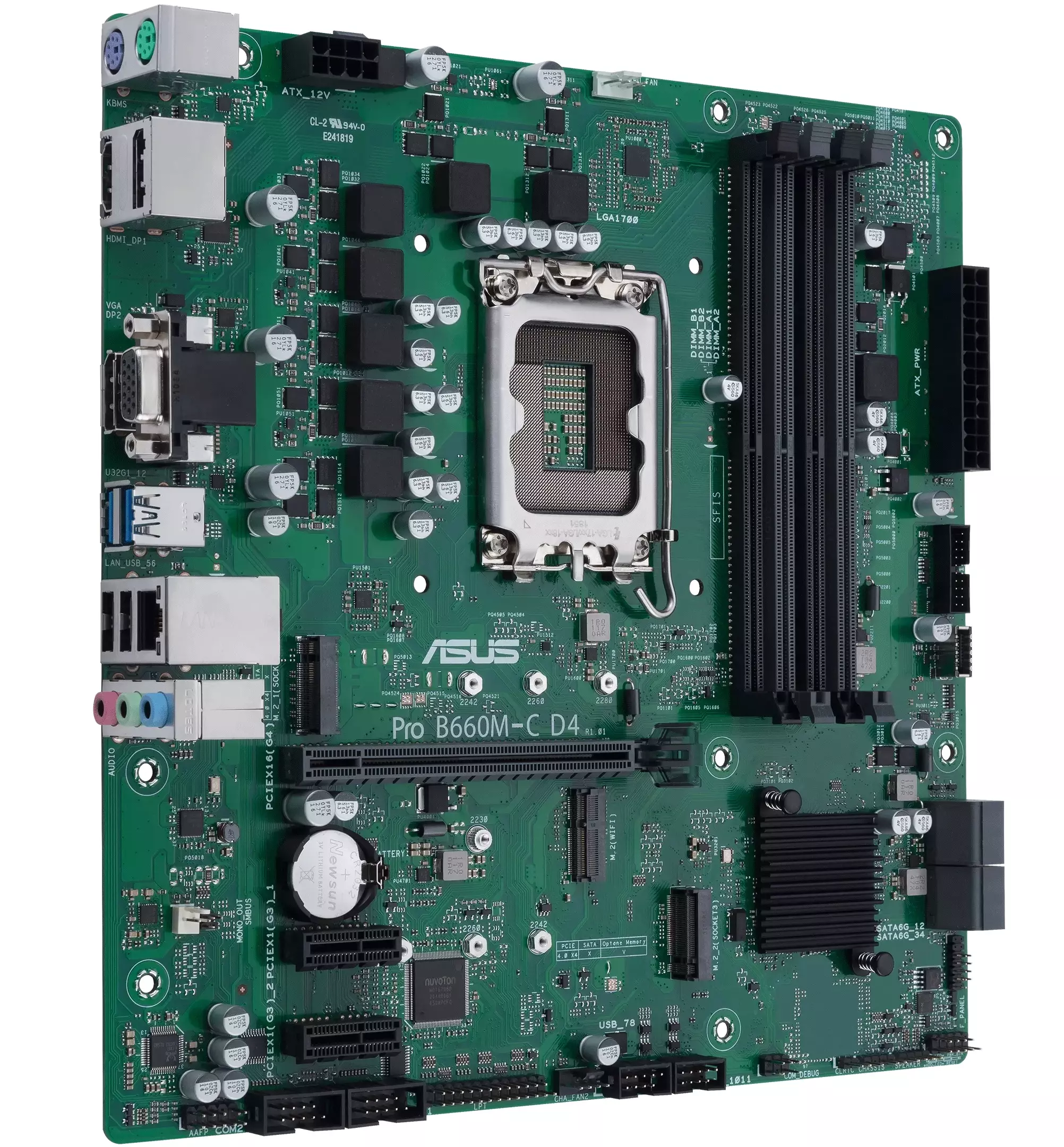

PRO B660M-C D4-CSMFeatures:Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processorsASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboardsASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administrationEnhanced system security: A self-recovering BIOS and TPM to safeguard PCsConsistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environmentsEfficient management and customization: An event log and commercial BIOS kit to enable easy maintenanceBetter serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processesSpecifications:CPUIntel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0ChipsetIntel® B660 ChipsetMemory4 x DIMM, Max. 128GB, DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 NonECC, Unbuffered MemoryDual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptimemGraphics1 x DSub2 x DisplayPort1 x DSub port1 x HDMI® portExpansion SlotsIntel® 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slotIntel® B660 Chipset 2 x PCIe 3.0 x1 slotsStorageSupports 2 x M.2 slots and 4 x SATA 6Gb/s portsIntel® 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 Intel® 12th Gen processors support PCIe 4.0 x4 modeIntel® B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)4 x SATA 6Gb/s portsEthernet1 x Intel® 1Gb Ethernet1 x Intel® 1Gb EthernetASUS LANGuardWireless & BluetoothM.2 slot only (Key E, CNVi & PCIe)USBRear USB (Total 4 ports)2 x USB 3.2 Gen 1 ports (2 x TypeA)2 x USB 2.0 ports (2 x TypeA)Front USB (Total 7 ports)1 x USB 3.2 Gen 1 connector (suppports USB TypeC®)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsAudioALC897Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jackdetection, Front Panel Jackretasking Supports up to 24Bit/192 kHz playbackBack Panel I/O Ports2 x USB 3.2 Gen 1 ports (2 x TypeA)2 x USB 2.0 ports (2 x TypeA)2 x DisplayPort1 x HDMI® port1 x DSub port1 x Intel® 1Gb Ethernet port3 x Audio jacks1 x PS/2 keyboard (purple) port1 x PS/2 mouse (green) porInternal I/O ConnectorsFan and cooling related1 x 4pin CPU Fan header2 x 4pin Chassis Fan headersPower related1 x 24pin Main Power connector1 x 8pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (suppports USB TypeC®)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous1 x Clear CMOS header1 x Chassis Intrude header2 x COM Port headers1 x Front Panel Audio header (AAFP)1 x COM debug header1 x LPT header1 x Monoout header(with Amp IC)1 x M.2 slot (Key E)1 x SMBUS header1 x Speaker header1 x 101 pin System Panel headerSpecial FeaturesASUS EZ DIY Box HeadersBespoke Motherboard Design & Business Focused Features QLED Core ASUS Self Recovering BIOS ASUS Event Log ASUS Commercial BIOS kit AntiMoisture 24/7 Reliability Overcurrent ProtectionTPM IC onboardSoftware FeaturesASUS Exclusive SoftwareIT Management software supported ASUS Control Center Express(ACCE)BIOS128Mb Flash ROMManageabilityWOL by PME, PXEAccessoriesCables 2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 SSD screw package1 x M.2 Key E screw packageInstallation Media 1 x Support DVDDocumentation1 x ACC Express Activation Key Card1 x User guideOperating SystemWindows® 11 64bit, Windows® 10 64bitForm FactormicroATX24.4cm x 24.4cm
