Beskrivelse

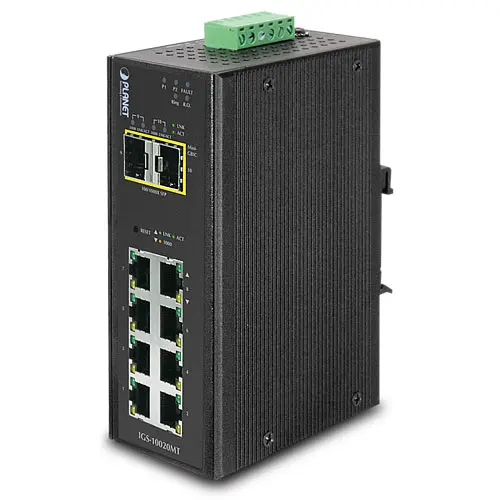

Industrial 8-Port 10/100/1000T + 2 100/1000X SFP Managed Switch (-40~75 degrees C)IGS-10020MTPLANET IGS-10020MT is an Industrial 10-Port Full Gigabit Managed Ethernet Switch specially designed to build a full Gigabit backbone to transmit reliable but high speed data in heavy industrial demanding environments and forward data to remote network through fiber optic. It provides 8-port 10/100/1000Base-T copper and 2 extra 100/1000Base-X SFP fiber optic interfaces delivered in an IP30 rugged strong caiise with redundant power system. Besides support for 20Gbps switch fabric to handle extremely large amounts of video, voice and important data in a secure topology, the IGS-10020MT provides user-friendly but advanced IPv6 / IPv4 management interfaces and abundant L2 / L4 switching functions. It is the best investment for industrial business expanding or upgrading its network infrastructureIndustrial Area Manageable Switch for Data Collection and ForwardingThe IGS-10020MT offers high performance and high reliability to make sure the continuous industrial operation in harsh environments such as control cabinet of transportation, factory floors, outdoor, and the places where are in extremely low or high temperatures. With a non-blocking design and desktop size, the installation of the IGS-10020MT is easy and helpful to build a Gigabit high-bandwidth switched network quickly.To further expand the current network, the IGS-10020MT provides advanced WEB and SNMP management interface to fulfill this kind of demand. With its built-in web-based management function, the IGS-10020MT offers an easy-to-use, platform-independent management and configuration facility. It supports standard Simple Network Management Protocol (SNMP) that makes the managed switch able to be monitored via any standard-based management software. By adopting the IGS-10020MT which complies with all the requirements of industrial applications, customers may enjoy high reliability, fast recovery capability, and safe Ethernet network operation.Features:Physical Port• 8-Port 10/100/1000Base-T RJ-45 copper• 2 100/1000Base-X mini-GBIC/SFP slots, SFP type auto detectionIndustrial Case / Installation• IP30 aluminum case protection• DIN-rail and wall mount design• Redundant Power Design - 12 to 48V DC, redundant power with polarity reverse protect function - AC 24V power adapter acceptable• Supports EFT protection 6000 VDC for power line • Supports 6000 VDC Ethernet ESD protection • -40 to 75 degrees C operating temperatureLayer 2 Features• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)• High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth• Storm Control support - Multicast / Unknown-Unicast• Supports VLAN - IEEE 802.1Q Tagged VLAN - Up to 255 VLANs groups, out of 4095 VLAN IDs - Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) - Private VLAN Edge (PVE) - Protocol-based VLAN - MAC-based VLAN - Voice VLAN• Supports Spanning Tree Protocol - STP, IEEE 802.1D Spanning Tree Protocol - RSTP, IEEE 802.1w Rapid Spanning Tree Protocol - MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN - BPDU Guard• Supports Link Aggregation - 802.3ad Link Aggregation Control Protocol (LACP) - Cisco ether-channel (Static Trunk) - Maximum 5 trunk groups, up to 10 ports per trunk group - Up to 20Gbps bandwidth (duplex mode)• Provides Port Mirror (many-to-1)• Port Mirroring of the incoming or outgoing traffic on a particular port • Supports E.R.P.S. (Ethernet Ring Protection Switching)Quality of Service• Ingress Shaper and Egress Rate Limit per port bandwidth control• 8 priority queues on all switch ports• Traffic classification - IEEE 802.1p CoS - IP TOS / DSCP / IP Precedence - IP TCP/UDP port number - Typical network application• Strict priority and Weighted Round Robin (WRR) CoS policies• Supports QoS and In/Out bandwidth control on each port• Traffic-policing policies on the switch port• DSCP remarking Multicast• Supports IGMP Snooping v1, v2 and v3• Supports MLD Snooping v1 and v2• Querier mode support• IGMP Snooping port filtering• MLD Snooping port filtering• MVR (Multicast VLAN Registration)Security• IEEE 802.1x Port-based / MAC-based network access authentication• Built-in RADIUS client to co-operate with the RADIUS servers• TACACS+ login users access authentication• RADIUS / TACACS+ users access authentication• IP-based Access Control List (ACL)• MAC-based Access Control List• Source MAC / IP address binding• DHCP Snooping to filter untrusted DHCP messages• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding• IP Source Guard prevents IP spoofing attacks• Auto DoS rule to defend DoS attack• IP address access management to prevent unauthorized intruderManagement• Switch Management Interfaces -Web switch management -Remote Telnet management -SNMP v1, v2c, and v3 switch management -SSH / SSL secure access• Four RMON groups (history, statistics, alarms, and events) • IPv6 IP Address / NTP / DNS management• Built-in Trivial File Transfer Protocol (TFTP) client• BOOTP and DHCP for IP address assignment• Firmware upload/download via HTTP / TFTP• DHCP Relay• DHCP Option 82• User Privilege levels control• NTP (Network Time Protocol)• Link Layer Discovery Protocol (LLDP) Protocol• Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues• Reset button for system reboot or reset to factory default• PLANET Smart Discovery Utility for deploy managementSpecifications:Hardware SpecificationsHardware Version2Copper Ports8 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X portsSFP/mini-GBIC Slots2 1000Base-SX/LX/BX SFP interfaces (Port-9 and Port-10)Compatible with 100Base-FX SFPSwitch ArchitectureStore-and-Forward Switch Fabric20Gbps / non-blockingThroughput (packet per second)14.8MppsAddress Table8K entries, automatic source address learning and ageingShare data Buffer512 kilobytesFlow ControlIEEE 802.3x pause frame for full-duplex. Back pressure for half-duplexJumbo Frame9KbytesReset Button< 5 sec: System reboot> 5 sec: Factory DefaultESD Protection6KV DCEFT Protection6KV DCEnclosureIP30 aluminum metal caseInstallationDIN rail kit and wall mount kitAlarmOne relay output for power failure.Alarm relay current carry ability: 1A @ DC 24VLED IndicatorSystem:Power 1 (Green)Power 2 (Green) Fault Alarm (Green)Ring (Green)R.O. (Green)Per 10/100/1000T RJ-45 Ports:Power LNK/ACT (Green) 1000 (Orange)Per SFP Interface:LNK/ACT (Green)1000 (Orange)Dimensions (W x D x H)87.8 x 135 x 56 mmWeight720gPower RequirementsDC 12 to 48V. AC 24V power adapterPower Consumption10 watts / 34BTU (full loading)Layer 2 functionBasic Management InterfacesWeb Browser, Remote Telnet, SNMP v1, v2cSecure Management InterfaceSSH, SSL, SNMP v3Port configurationPort disable/enableAuto-negotiation 10/100/1000Mbps full and half duplex mode selectionFlow Control disable / enablePower saving mode controlPort StatusDisplay each port’s speed duplex mode, link status, flow control status. Auto negotiation status, trunk status.Port MirroringTX / RX / BothMany to 1 monitorVLAN802.1Q Tagged based VLAN ,up to 255 VLAN groupsQ-in-Q tunnelingPrivate VLAN Edge (PVE)MAC-based VLANProtocol-based VLANVoice VLANMVR (Multicast VLAN Registration)Up to 255 VLAN groups, out of 4095 VLAN IDsLink AggregationIEEE 802.3ad LACP / Static TrunkSupport 5 groups of 10-Port trunk supportQoSTraffic classification based, Strict priority and WRR8-level priority for switching - Port Number - 802.1p priority - 802.1Q VLAN tag - DSCP/TOS field in IP PacketIGMP SnoopingIGMP (v1/v2/V3) Snooping, up to 255 multicast GroupsIGMP Querier mode supportMLD SnoopingMLD (v1/v2) Snooping, up to 255 multicast GroupsMLD Querier mode supportAccess Control ListIP-Based ACL / MAC-Based ACLUp to 123 entriesBandwidth ControlPer port bandwidth control Ingress: 500Kb~80Mbps Egress: 64Kb~80MbpsSNMP MIBsRFC-1213 MIB-IIIF-MIBRFC-1493 Bridge MIBRFC-1643 Ethernet MIBRFC-2863 Interface MIBRFC-2665 Ether-Like MIBRFC-2819 RMON MIB (Group 1, 2, 3 and 9)RFC-2737 Entity MIBRFC-2618 RADIUS Client MIBRFC-2933 IGMP-STD-MIBRFC3411 SNMP-Frameworks-MIB IEEE 802.1X PAELLDPMAU-MIBStandards Conformance Regulation ComplianceFCC Part 15 Class A, CE Stability TestingIEC60068-2-32 (Free fall)IEC60068-2-27 (Shock)IEC60068-2-6 (Vibration)Standards ComplianceIEEE 802.3 10Base-TIEEE 802.3u 100Base-TX / 100Base-FXIEEE 802.3z Gigabit SX/LXIEEE 802.3ab Gigabit 1000TIEEE 802.3x Flow Control and Back pressureIEEE 802.3ad Port trunk with LACPIEEE 802.1D Spanning Tree ProtocolIEEE 802.1w Rapid Spanning Tree ProtocolIEEE 802.1s Multiple Spanning Tree ProtocolIEEE 802.1p Class of serviceIEEE 802.1Q VLAN TaggingIEEE 802.1x Port Authentication Network ControlIEEE 802.1ab LLDPRFC 768 UDPRFC 793 TFTPRFC 791 IPRFC 792 ICMPRFC 2068 HTTPRFC 1112 IGMP version 1RFC 2236 IGMP version 2RFC 3376 IGMP version 3RFC 2710 MLD version 1FRC 3810 MLD version 2Environment OperatingTemperature:-40 ~ 75 degrees CRelative Humidity:5 ~ 95% (Non-condensing)StorageTemperature:-40 ~ 75 degrees CRelative Humidity:5 ~ 95% (non-condensing)
