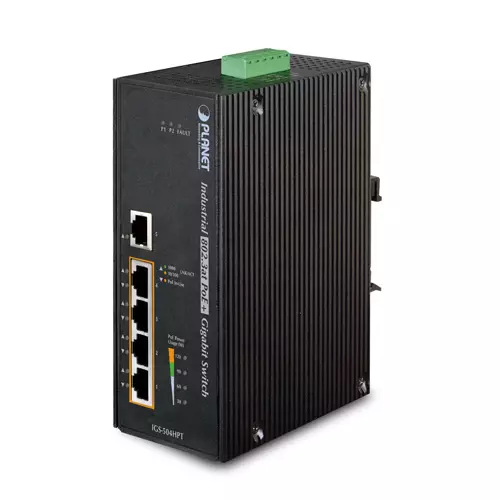

Industrial 5-Port Gigabit Switch w/ 4-Port 802.3at PoE+IGS-504HPTPLANET IGS-504HPT is an Industrial Gigabit 802.3at PoE+ Switch providing Power over Ethernet capability and non-blocking wire-speed Gigabit performance in harsh industrial environment. It provides 4-port 10/100/1000Base-T copper with 802.3af/at PoE injector delivered in an IP30 rugged strong case with redundant power system. The IGS-504HPT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.High Power PoE for Security and Public Service ApplicationsTo fulfill the demand of High Power PoE for network applications with Gigabit speed transmission under wide temperature, the IGS-504HPT provides 4 10/100/1000Mbps ports featuring both IEEE 802.3af and IEEE 802.3at Power over Ethernet Plus (PoE+) that combine up to 30 watts of power output and data per port over one Cat.5E / 6 Ethernet cable. With totally 120-watt PoE budget on the whole system, the IGS-504HPT is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi-channel (802.11a / b / g / n) outdoor wireless LAN access points and other PoE network devices by providing double PoE power, rather than the current conventional 802.3af PoE.Features:Physical Port5-port 10/100/1000Base-T RJ-45 with 4-port IEEE 802.3af / 802.3at PoE InjectorPower over EthernetComplies with IEEE 802.3af / IEEE 802.3at Power over Ethernet Plus End-Span PSEUp to 4 IEEE 802.3af / 802.3at devices poweredSupports PoE Power up to 30.8 watts for each PoE portProvides DC 52V power over RJ-45 Ethernet cable to PD with Ethernet portAuto-detects IEEE 802.3af/at equipment and protects devices from being damaged by incorrect installationRemote power feeding up to 100mLayer 2 FeaturesSupports Auto-Negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex modePrevents packet loss with back pressure (half-duplex) and IEEE 802.3x PAUSE frame flow control (full-duplex)Automatic address learning and address agingIndustrial Case / InstallationIP30 aluminum metal case protectionDIN Rail and Wall Mount Design48V DC redundant power with polarity reverse protect function and removable terminal block for master and slave powerSupports EFT protection of 6000 VDC for power lineSupports 6000 VDC Ethernet ESD protection-40 to 75 degrees C operating temperatureSpecifications:Hardware Specifications Copper Ports5 x 10/100/1000Base-T RJ-45 TPAuto-MDI/MDI-X, Auto-NegotiationConnectorRemovable 6-pin terminal blockPin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2AlarmProvides one relay output for power failureAlarm Relay current carry ability: 1A @ DC 24VLED3 x LED for System and Power: ■ Green: DC Power 1 ■ Green: DC Power 2 ■ Green: Power Fault2 x LED for Per Copper Port (Port-1~Port-4): ■ Green: 1000 LNK/ACT, Orange:100 LNK/ACT ■ Orange: PoE In-use1 x LED for Port-5: ■ Green: 1000 LNK/ACT, Orange:100 LNK/ACT4 x LED for PoE Power Usage (W): ■ Orange: 30, 60, 90 and 120WESD Protection6KV DCEFT Protection6KV DCEnclosureIP30 aluminum metal caseInstallation TypeDIN rail kit or wall mount Dimensions (W x D x H)152 x 107x 72 mmWeight1478gPower Requirements48V DC, 5A max.Redundant power with polarity reverse protection functionPower Consumption / Dissipation 14.1 watts / 48 BUT (System loading without PoE)134.1 watts / 457 BTU (Full loading with PoE function)Power over EthernetPoE StandardIEEE 802.3af / IEEE 802.3at Power over Ethernet / PSEPoE Power Supply TypeEnd-SpanPower Pin Assignment1/2(+), 3/6(-)PoE Power OutputPer port 52V DC, 275mA. Max. 15.4 watts (IEEE 802.3af)Per port 52V DC, 535mA. Max. 30 watts (IEEE 802.3at)Max. number of Class 4 PD4Switch SpecificationSwitch Processing SchemeStore-and-ForwardAddress Table1K entriesFlow ControlBack pressure for half duplexIEEE 802.3x Pause Frame for full duplexSwitch fabric10GbpsThroughput (packet per second)7.44Mpps@64bytesMaximum Transmit Unit9216 bytesSpeedTP: 10/20Mbps, 100/200Mbps, 2000MbpsStandards ConformanceStandards ComplianceIEEE 802.3 Ethernet / 10Base-TIEEE 802.3u Fast Ethernet / 100Base-TXIEEE 802.3ab Gigabit Ethernet / 1000Base-TIEEE 802.3x Full-Duplex Flow ControlIEEE 802.3at High Power over EthernetIEEE 802.3af Power over EthernetRegulation ComplianceFCC Part 15 Class A, CEStability TestingIEC60068-2-32(Free fall)IEC60068-2-27(Shock)IEC60068-2-6(Vibration)EnvironmentTemperature Operating:-40~75 degree CStorage:-40~75 degrees CHumidityOperating:5~95% (Non-condensing)Storage:5~95% (Non-condensing)
