Beskrivelse

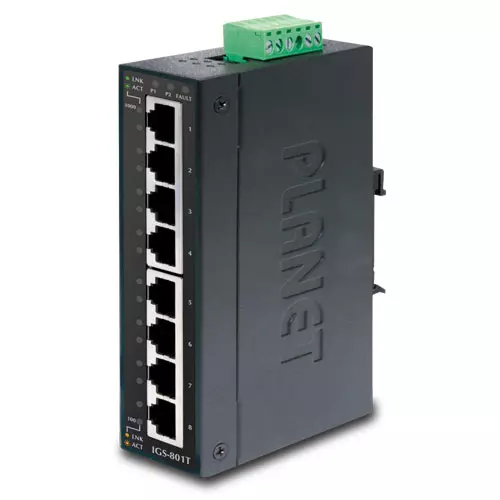

Planet Switch 10/100/1000Mbps 8-portIGS-801TDIN Rail IP-30 -12/48V -40/75 Grader8-Port 10/100/1000Mbps Industrial Gigabit Ethernet Switchw/ Wide Operating TemperatureNew slim type with more practicability and convenienceAfter entering the Industrial Ethernet market with popular ISW / IFT series Fast Ethernet Switch / Converter products, PLANET now releases the advanced industrial hardened Gigabit Ethernet Switch series with new slim type, IP-30 metal case. The compact, IP-30 standard metal case allows either DIN rail or wall mounting for efficient use of cabinet space. The IGS-801T, one of the new series model, equips with 8 10/100/1000Mbps auto negotiation ports and operates reliably in Heavy Industrial demanding environments.Stable performance under difficult environmentsThe IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degree C coupled with hazardous location certification (Class 1 Division 2), the IGS-801T can be placed in almost any difficult environment. The IGS-801T also possesses an integrated power supply source with wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs.Robust Switch performanceThe IGS-801T offers high performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 16Gbps and the 8K MAC Address table, the IGS-801T can perform wire-speed packets transfer without risk of packet loss.The flow control function enables the IGS-801T to provide fast and reliable data transfer. The Gigabit port with 9K Jumbo frame supported can handle extremely large amounts of data transmission in industrial topology that forward data to central control room.All of the RJ-45 copper interfaces in the IGS-801T support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. The standard Auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.FeaturesPhysical Port8-Port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X functionLayer 2 FeaturesComplies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standardSupports Auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex modeHigh performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidthPrevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex)Backplane (Switching Fabric): 16GbpsIntegrated address look-up engine, support 8K absolute MAC addresses176 kilobytes on-chip frame buffer9K Jumbo packet size supportAutomatic address learning and address agingCSMA/CD ProtocolIndustrial Case / InstallationIP-30 Metal case / ProtectionDIN Rail and Wall Mount Design12 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave powerSupports EFT protection 6000 VDC for power lineSupports 6000 VDC Ethernet ESD protection-40 to 75 Degree C operation temperature
