Beskrivelse

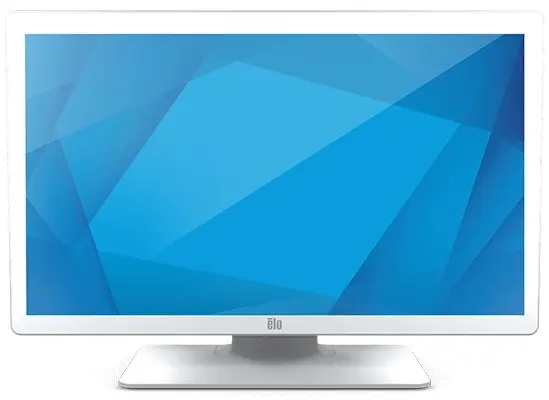

2703LM 27″ Medical Grade Touchscreen MonitorTouchPro PCAP White with standE659793The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.Specifications:Enclosure ColorWhite or BlackTouch Technology & CapacityPCAP (TouchPro® Projected Capacitive) – 10 TouchDiagonal Size27» diagonal, Active matrix TFT LCD (LED)Aspect Ratio16:9Active Area23.54″ x 13.24″ / 597.88 x 336.31 mmResolution1920 x 1080 @ 50, 60HzOther Supported Resolutions640 x 480 60Hz640 x 400 70Hz720 x 400 70Hz800 x 500 60Hz800 x 600 56, 60Hz1024 x 768 60Hz1280 x 720 @ 58Hz, 60Hz1280 x 800 60Hz1280 x 1024 60Hz1366 x 768 60Hz, 60Hz RB1440 x 900 60Hz, 60Hz RB1680 x 1050 60Hz, 60Hz RBViewing AngleHorizontal: ±89° or 178° total / Vertical: ±89° or 178° totalNumber of Colors16.7 millionBrightness (typical)LCD Panel: 300 nitsTouchPro PCAP: 270 nitsResponse Time-total (typical)14 msecContrast Ratio1000:1Touch InterfaceUSB, Serial (via VGA)Surface TreatmentAnti-glareOn Screen DisplayControls: Menu, Up, Down, SelectSettings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru, Touch Interface, DICOMLanguages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, KoreanLockouts: OSD, PowerI/O PortsVGA (RS232 touch supported via E810917)HDMICombo JackDC jackUSB Type BUSB 2.0 Type A4x Micro USBSpeakersTwo x 2W internal speakersInput Video FormatVGA (VGA DE-15 (DB-15) Male connecter cable included)HDMI (HDMI cable included)Input Video FrequencyHorizontal: 30 – 82KHzVertical: 50 – 75HzPower Consumption (Typical)Monitor + AC/DC adapterON (Default – 75% Brightness): 17.37 WON (Typical – 100% Brightness): 22.41WSLEEP: 1.006 WOFF: 0.24 WInput Voltage12VDC +/- 5%100-240VAC, 50/60HzInput ConnectorCoaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)Peripheral Mounting4x Micro USB side ports (Top, Bottom, Left, Right)Monitor Dimensions (without Stand)15.52″ x 25.50″ x 1.77″ / 394.1 mm x 647.6 mm x 44.9 mmMonitor Dimensions (with Stand)17.75″ x 25.50″ x 9.17″ / 450.9 mm x 647.6 mm x 233 mmShipping Box DimensionsWith Stand: 22.05″ x 30.08″ x 12.68″ / 560 mm x 764 mm x 322 mmWithout Stand: 20.47» x 30.31» x 7.36» / 520 mm x 770 mm x 187 mmWeight (Unpackaged)With Stand: 22.64 lbs / 10.27 kgWithout Stand: 15.72 lbs / 7.13 kgWeight (Packaged)With Stand: 31.48 lbs / 14.28 kgWithout Stand: 22.95 lbs / 10.41 kgOperating Temperature0°C to 40°C / 32°F to 104°FStorage Temperature-20°C to 60°C / -4°F to 140°FHumidityOperating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)SealabilityTouchscreen sealed to bezel; Touchscreen sealed to LCDMTBF50,000 hours demonstratedMounting OptionsVESA 4-hole 100mm mounting interface on rear of unitWarranty3-yearRegulatory approvals and declarationsCanada CUL, ICChina CCCEurope CEUnited Kingdom UKCAKorea KCCTaiwan BSMIUnited States FCC, ULJapan VCCIInternational CBAustralia RCMRussia EACMexico CoCRoHS, China RoHS, WEEE, REACHIndia BISDICOMDICOM Part 14 (AAPM secondary display)Ingress ProtectionIP54 entire enclosureImpact ProtectionIK06What’s in the BoxTouchmonitorQuick Install Guide3x Tie wrapsVGA cableHDMI cableTouch USB cableAudio cablePower brick (E323104)NA Power cableEU Power cableEEI LabelDICOM calibration sheet4 x VESA Screws (only for E381654 and E381844)4 x rubbers (only for E381654 and E381844, affix to VESA holes)2 x Cable cover screws Selv om vi gjør vårt beste for å gi relevant informasjon, så er bildene kun for å gi etgenerelt inntrykk, og selve varen er ikke nødvendigvis akkurat slik som avbildet. Dersom det erforskjeller mellom produktoverskrift, beskrivelse og bilde, så er det produktoverskriften somgjelder (f.eks. PCer kommer ikke nødvendigvis med skjerm selv om bildet viser det). Hvis noe eruklart, vennligst send epost til kundestøtte før du bestiller. Vi tar forbehold om trykkfeil og endring av priser og spesifikasjoner uten varsel.
