Beskrivelse

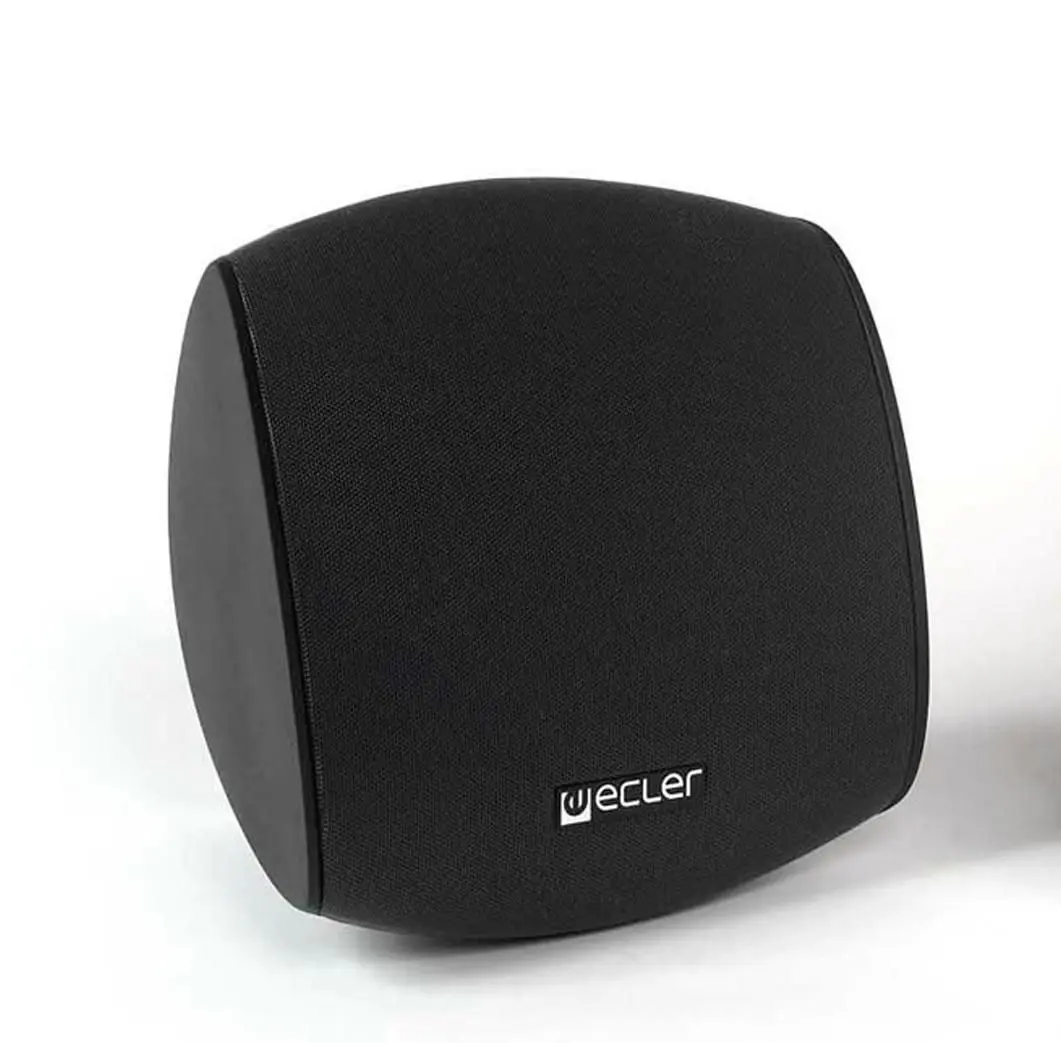

AUDEO 106Features:50 W RMS – 8 ohms Efficiency: 92,5 dB SPL 1 W / 1 m 8 ohm / 100 V (5, 7,5, 15 or 30 W) mode switch 6.5″ woofer and 25 mm Tweeter Frequency response (-10 dB): 90 Hz to 20 kHz Dimensions: 242 x 242 x 163 mm Weight: 2.3 kgAUDEO SeriesThe AUDEO loudspeaker series strikes the perfect balance between the intelligibility and sound reproduction quality requirements currently demanded in the professional audio installation and ever increasing demands with respect to aesthetics, design and integration into all types of architectural environments.AUDEO has a balanced, innovative design, resulting from the collaboration between Ecler and the prestigious group Giugiaro Design during the conceptual and the external design phases of the speakers. This factor, together with its high quality sound reproduction, make this series the ideal solution for use in numerous sound projects: corporate and residential buildings, commercial premises, leisure centres, health centres, conference and meeting rooms, auditoriums, museums, etc.This versatile series, which comes in three sizes (AUDEO 103, 106 and 108), and in black or white, is completed by its wall/ceiling supports which allow the cabling to be concealed and make it possible to install the speakers at low (8 ohms) or high impedance operation (100 V line).In addition to the included wall bracket, the 103 and 106 models can use the DSTANDAUDEO desktop stand. If you need to mount the AUDEO speakers on a microphone stand, then the MSTANDAUDEO is the right accessory to use.Features:Full range, 2-way acoustic boxes.Made of reinforced ABSAvailable in black or white8 ohms / 100 V line operating switchAccessories for wall-mounting includedIP 54 class for installing outdoorsProtective grille at the front with anti-rust treatmentSpecifications:AUDEO103AUDEO106AUDEO108Ways222Nominal low impedance8Ω8Ω8ΩMax RMS power25 W50 W100 WProgram power50 W100 W200 WNominal high impedance100 V LINE100 V LINE100 V LINEPower selector2.5 / 5 / 7.5 / 15 W5 / 7.5 / 15 / 30 W7.5 / 15 / 30 / 60 WEfficiency SPL 1W 1m90 dB92.5 dB94.5 dBFrequency response at –10dB @ 8Ω110 Hz ÷ 20 kHz90 Hz ÷ 20 kHz65 Hz ÷ 22 kHzDimensions WxHxD (without accessories)132x134x110mm242x242x163mm300x310x223mmWeight1.45 kg2.3 kg3.75 kg
