Beskrivelse

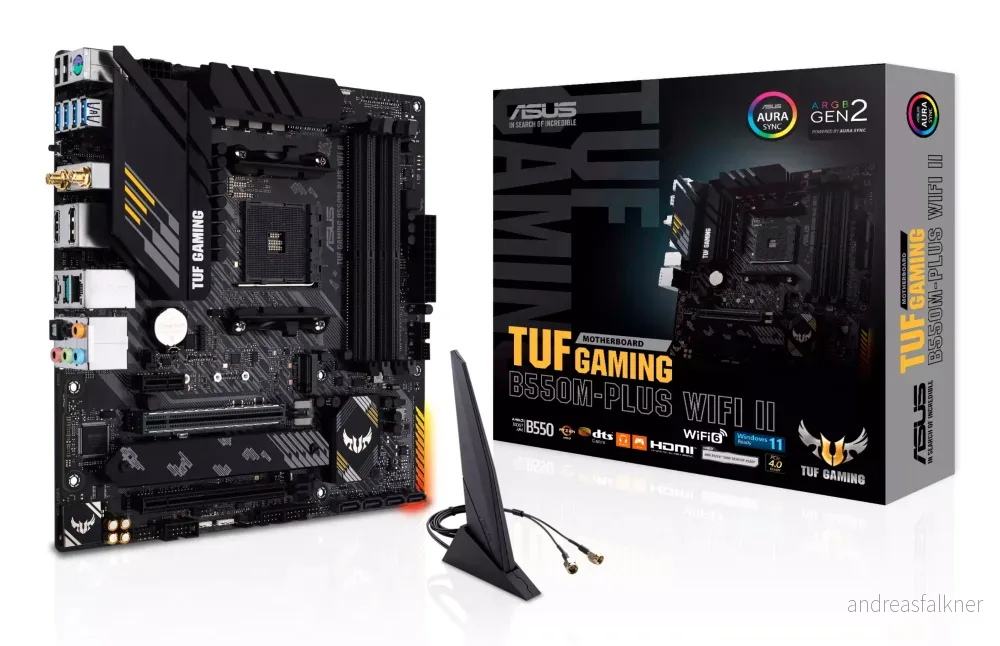

TUF GAMING B550M-PLUS WIFI IIFeatures:AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop ProcessorsEnhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and DIGI+ VRM for maximum durabilityComprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utilityUltrafast connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C® supportMade for online gaming: Wi-Fi 6, Realtek 2.5Gb Ethernet, and TUF LANGuardTwo-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferencesSpecifications:CPUAMD Ryzen™ 5000 Series/ 5000 GSeries/ 4000 GSeries/ 3000 Series Desktop ProcessorsChipsetB550Memory4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Unbuffered MemoryDual Channel Memory ArchitectureGraphics1 x DisplayPort1 x HDMI®portExpansion SlotsAMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode)AMD Ryzen™ 5000 GSeries/ 4000 GSeries Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode)AMD B550 Chipset1 x PCIe 3.0 x16 slot (supports x4 mode)1 x PCIe 3.0 x1 slotStorageSupports 2 x M.2 slots and 4 x SATA 6Gb/s portsAMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)AMD Ryzen™ 5000 GSeries/ 4000 GSeries Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)4 x SATA 6Gb/s portsSupport RAID 0, 1, 10EthernetTUF LANGuardWireless & Bluetooth2x2 WiFi 6 (802.11 a/b/g/n/ac/ax) + BT5.2USBRear USB:Total 8 ports2 x USB 3.2 Gen 2 ports (1 x TypeA + 1 x USB TypeC®)4 x USB 3.2 Gen 1 ports (4 x TypeA)2 x USB 2.0 ports (2 x TypeA)Front USB:Total 6 ports1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsAudioALC897Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jackdetection, Multistreaming, Front Panel Jackretasking Supports up to 24Bit/192 kHz playbackAudio Features Audio Shielding Rear optical S/PDIF out port Premium audio capacitors Dedicated audio PCB layers Audio coverBack Panel I/O Ports2 x USB 3.2 Gen 2 ports (1 x TypeA + 1 x USB TypeC®)4 x USB 3.2 Gen 1 ports (4 x TypeA, one port can be switched to USB BIOS FlashBack™)2 x USB 2.0 ports (2 x TypeA)1 x DisplayPort1 x HDMI® port1 x WiFi Module1 x Realtek 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button1 x PS/2 Keyboard/Mouse combo portInternal I/O ConnectorsFan and Cooling related1 x 4pin CPU Fan header1 x 4pin CPU OPT Fan header2 x 4pin Chassis Fan headersPower related1 x 24pin Main Power connector1 x 8pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous1 x Addressable Gen 2 header2 x AURA RGB headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x Speaker header1 x SPI TPM header (141pin)1 x 101 pin System Panel headerSpecial FeaturesASUS TUF PROTECTION DIGI+ VRM (Digital power design with DrMOS) Enhanced DRAM Overcurrent Protection ESD Guards TUF LANGuard Overvoltage Protection SafeSlot StainlessSteel Back I/OASUS QDesign QDIMM QLED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) QSlotASUS Thermal Solution M.2 heatsink VRM heatsink designASUS EZ DIY BIOS FlashBack™ button BIOS FlashBack™ LED ProCoolAURA Sync AURA RGB headers Addressable Gen 2 headerSoftware FeaturesASUS Exclusive SoftwareArmoury Crate Aura Creator Aura Sync TwoWay AI Noise CancelationAI Suite 3 Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ EZ updateTUF GAMING CPUZAI ChargerDAEMON ToolsDTS Custom for GAMING HeadsetsNorton Antivirus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ ModeBIOS256 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessoriesCables 2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS WiFi moving antennas1 x I/O Shield1 x M.2 Rubber package1 x M.2 SSD screw package1 x TUF Gaming stickerInstallation Media 1 x Support DVDDocumentation1 x TUF Certification card1 x User guideOperating SystemWindows 10 64bitWindows® 11 readyWindows® 10 64bitForm FactormicroATX24.4cm x 24.4cm
