Beskrivelse

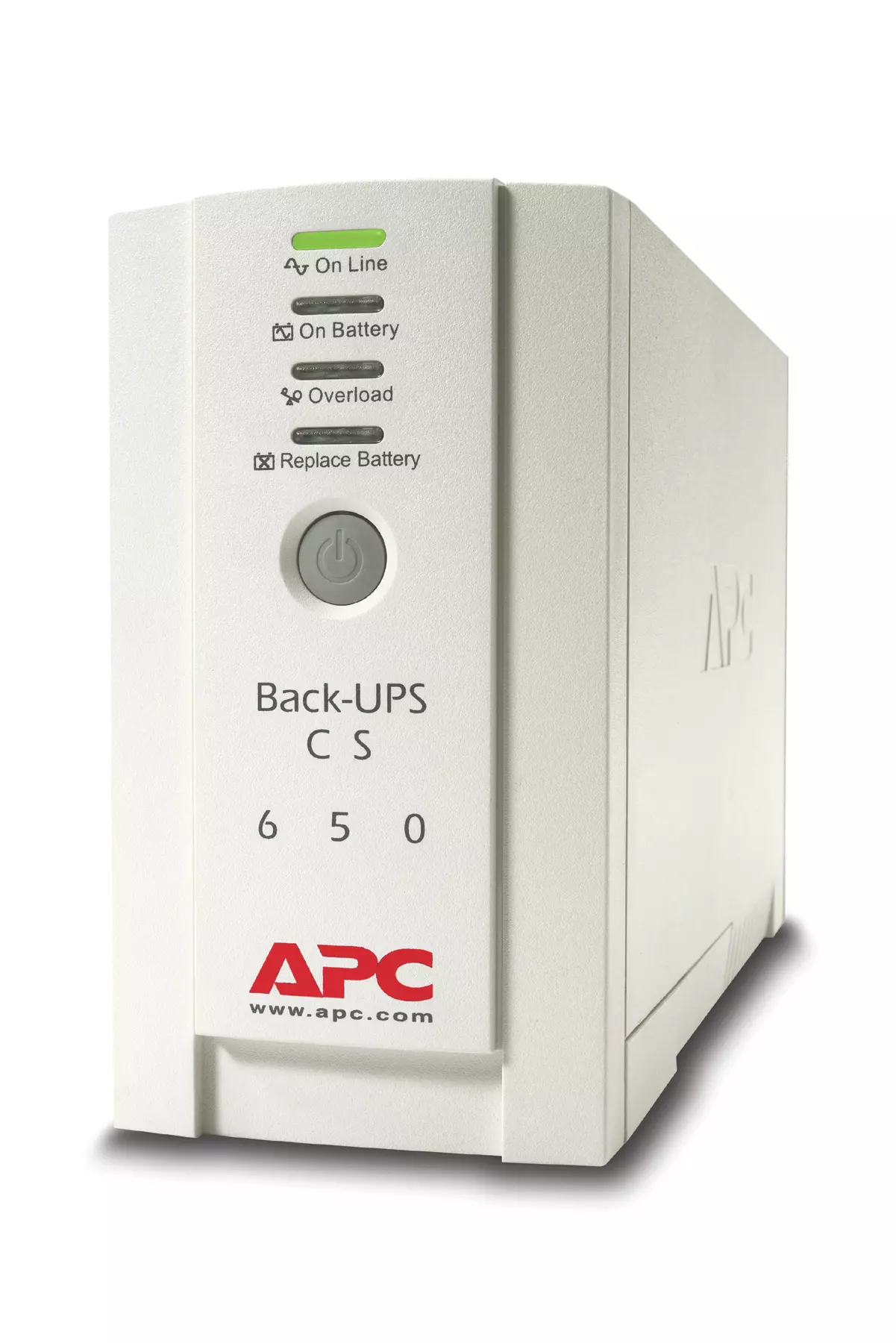

Back-UPS CS 650VA 230VBK650EIAPC Back-UPS CS, 650VA/400W, Input 230V/Output 230V, Interface Port DB-9 RS-232, USBIncludes: CD with software, USB cable, User ManualOutputOutput Power Capacity 400Watts /650 VA Max Configurable Power 400Watts /650 VA Nominal Output Voltage 230V Output Connections (1) IEC 320 C13 (Surge Protection) (3) IEC 320 C13 (Battery Backup) InputNominal Input Voltage 230V Input Frequency 50/60 Hz +/- 3 Hz (auto sensing) Input Connections IEC-320 C14 Cord Length 6.56feet ( 2meters) Input voltage range for main operations 180 – 260V Input voltage adjustable range for mains operation 160 – 282V Batteries & RuntimeBattery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Typical recharge time 8hour(s) Replacement battery cartridge RBC17 RBC™ Quantity 1 Typical Backup Timeat Half Load 11.4minutes (200 Watts) Typical Backup Timeat Full Load 2.4minutes (400 Watts) Runtime Chart Back-UPS CS Communications & ManagementInterface Port(s) DB-9 RS-232,USB Control panel LED status display with On Line : On Battery : Replace Battery and Overload indicators Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Surge Protection and FilteringSurge energy rating 320Joules PhysicalMaximum Height 6.50inches (165mm) Maximum Width 3.60inches ( 91mm) Maximum depth 11.20inches (284mm) Net Weight 13.27lbs. ( 6.03kg) Shipping Weight 16.09lbs. ( 7.31kg) Shipping Height 19.44inches (494mm) Shipping Width 7.28inches (185mm) Shipping Depth 16.34inches (415mm) Master Carton Units 1.00 Master Carton Weight 16.09lbs. Color Beige SCC Codes 1073130421978 8 EnvironmentalOperating Environment 32 – 104°F (0 – 40°C) Operating Relative Humidity 5 – 95% Operating Elevation 0-30000feet (0-9000meters) Storage Temperature 5 – 113°F (-15 – 45°C) Storage Relative Humidity 5 – 95% Storage Elevation 0-15000feet (0-4500meters) Audible noise at 1 meter from surface of unit 45dBA ConformanceRegulatory Approvals A-tick,C-tick,CE,GOST,NEMKO Standard Warranty 2 years repair or replace Equipment protection policy Lifetime : 100000 Euro,Lifetime : 50000 GBP
